Mainspring Linear Generators
Reliable, fuel-flexible generation that outperforms fuel cells
The future-proof way to generate onsite power
250 kW – 50 MW+ options.
High Efficiency
The Mainspring Linear Generator delivers unmatched efficiency through innovative, low-temperature, linear motion technology. No emissions controls required, and permits into all air districts out of the box. Higher efficiency drives lower total cost of ownership.
Fully Dispatchable
The product provides fully dispatchable power, allowing you to ramp up or down instantly to meet real-time energy demands. Black Start, Load Follow, and fully island capable.
Fuel Flexible
The only commercially available technology that can fuel switch in real time, under load. Designed for fuel flexibility, it runs on natural gas, biogas, hydrogen, or other clean fuels to suit your energy strategy. A Mainspring linear generator is the most future fuel ready option.
Speed to Power
With fast deployment and modular design, you can get reliable onsite power up and running in just weeks, not months. Contact us below to learn more about current lead times.
Why We Partnered With Mainspring Energy
Mainspring’s innovative linear generator technology has redefined what’s possible in onsite power. By combining it with our 60+ years of field-proven expertise and industry-leading service, we deliver turnkey energy solutions that are as reliable as they are prolific. Together, we’re setting a new benchmark for performance, support, and sustainability.
To learn more, read the press release here.

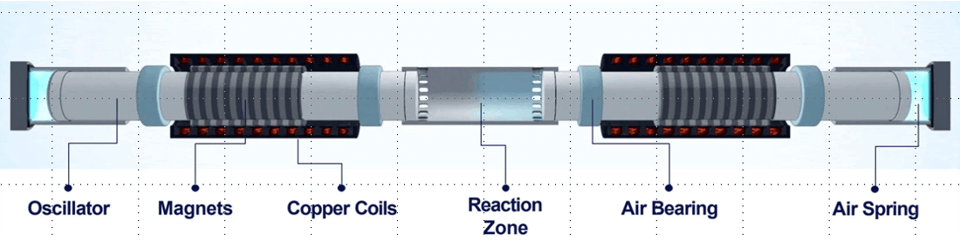

How it Works

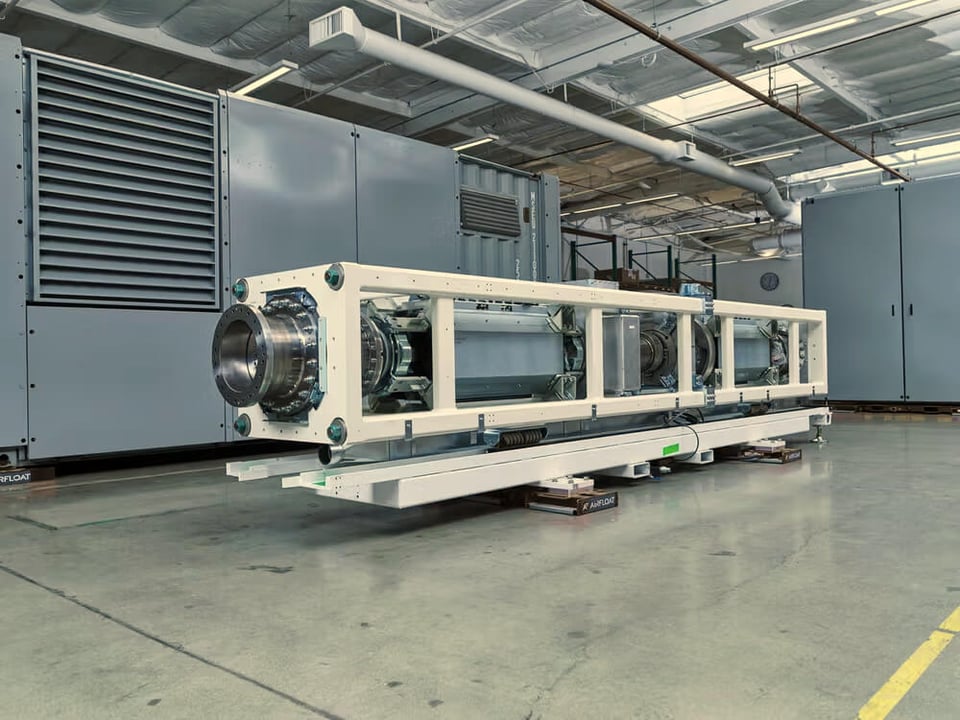

The Mainspring Linear Generator — distinct from an engine, turbine, or fuel cell — directly converts motion along a straight line into electricity using chemical energy. At the heart of the product is the linear generator core. Mainspring Linear Generators feature two cores in each package, working in tandem.
Markets Served
Backed by The Kinsley Commitment
- We’re sticking around: for over 60 years, we’ve provided onsite energy solutions. We’re your long-term partner.
- We show up: we provide industry’s best field service with under 4 hour service response time.
- We do right by you: demonstrated through our commitment to customer service.
Product Specifications
Utility-scale performance for any project size
-Easy, 250kw modular installations
-High availability, low maintenance
-Up to 25 MW / acre scalability
Inputs
Any blend of Biogas (1), Natural Gas, Hydrogen, and Propane
5-20 psig (15 psig nominal) input pressure
No water
Outputs
400/480 V, 3 Phase,
50/60 Hz
Large-scale projects:
>1.5 MW, net AC
External inverters
Base package:
250 kW, net AC
Internal inverters
Physical
Large-scale projects:
Up to 25 MW/acre
Base package:
20.5’ x 8.5’ x 9.5’ (L,W,H)
Emissions
NOx < 1.5 ppmvd (3)
Sound < 70 dBA @ 3m, <65 dBA @10m
Performance
46% efficiency, net AC (2)
Load tracking
Zero to full power
Other
UL 2200 package
UL 1741 SB grid-tie inverter
Remote monitoring
1. Sulfur: < 30 ppmvd; Siloxanes: < 100 ppbvd; Oxygen and nitrogen: no limitations
2. Measured according to ASME PTC 50 at 15 C and 1 atm
3. Products comply with emissions limits in South Coast AQMD
